Technology

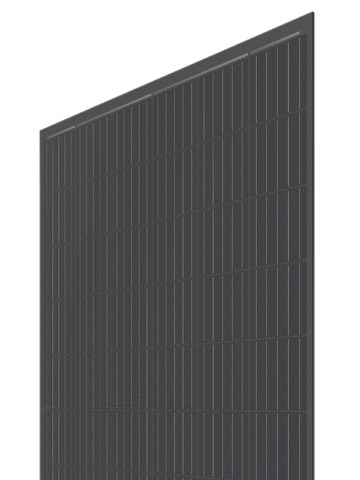

Glass-glass solar modules

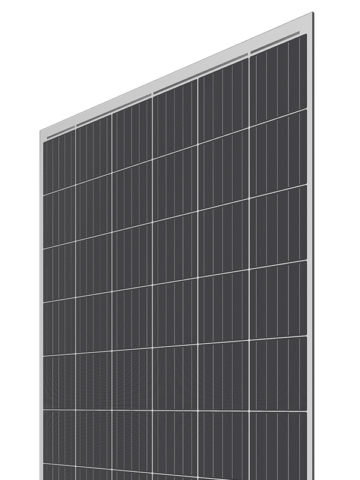

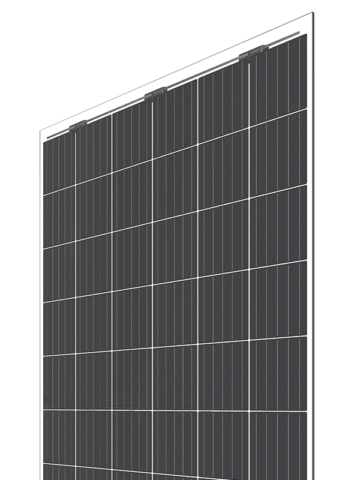

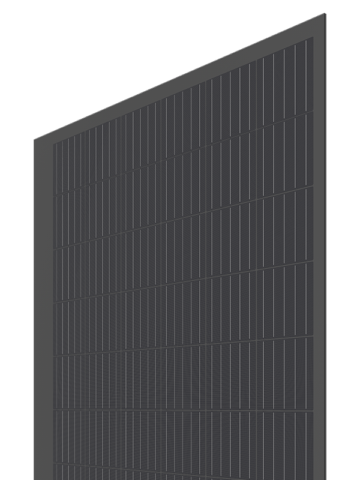

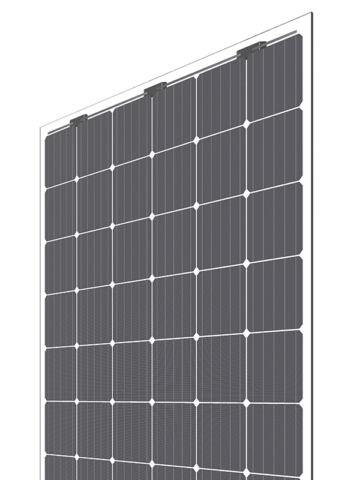

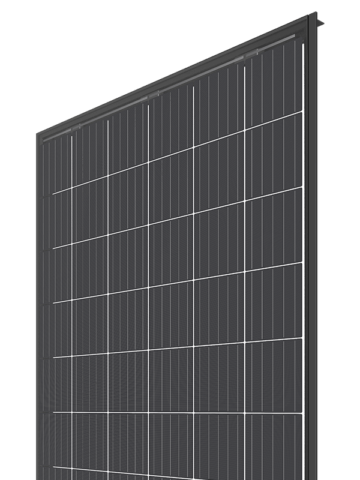

There is a distinction between two solar module types: glass-film and glass-glass modules. In the glass-glass type, two panes are combined into one solar module. They become laminated safety glass and therefore have unique properties.

Properties

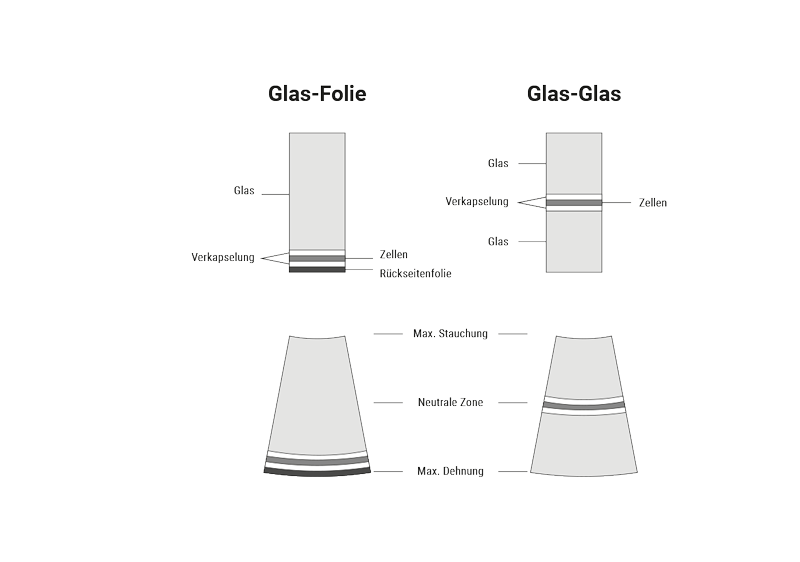

Front and back glass in combination with durable encapsulation material protect the components from vapour penetration. In the «neutral zone» between the panes, the cells remain stress-free (no compression or bending) which reduces the occurrence of so-called micro cracks. This results in a potential lifespan of over 50 years. Free design scope, high durability and stability characterise this solar building material. All glass-glass modules can be designed freely. Glass-glass modules are manufactured in Deitingen SO, Switzerland.

Areas of application
The use ranges from facades and railings to roof-integrated and rooftop applications.

Type of installation

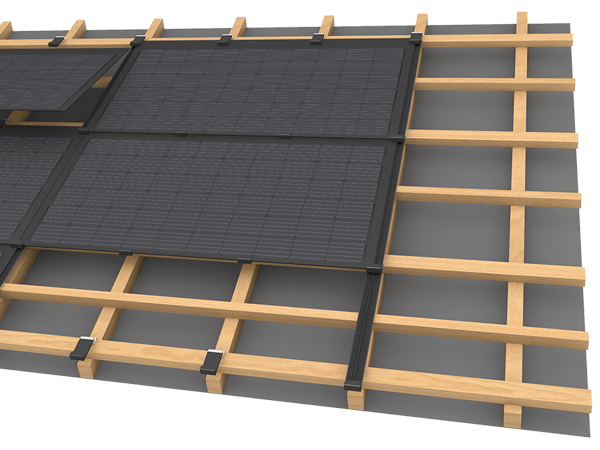

Glass-glass solar modules can be installed both with or without frames. The mounting systems FAST, LEVEL and NICER are especially suitable for the integration of glass-glass solar modules.

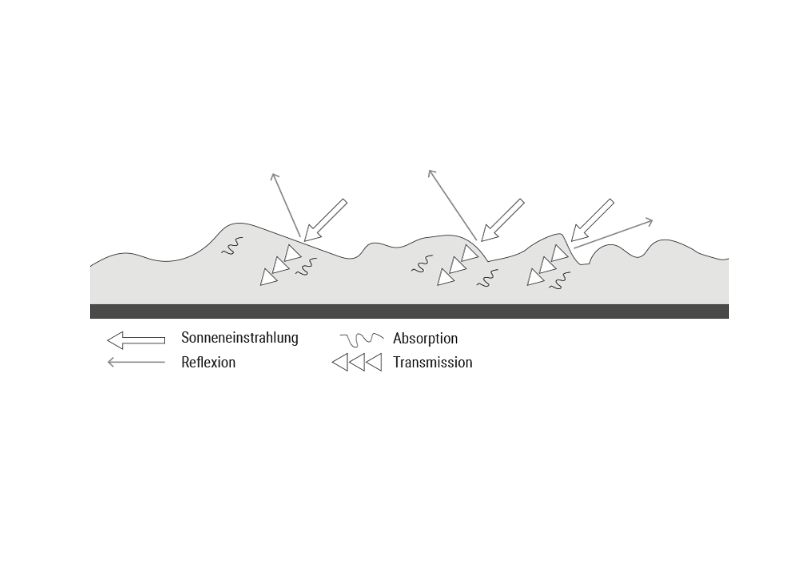

Non-glare solar glass
Particularly anti-glare surface structures are used.

Technical specifications

Cell types: Poly / Mono PERC / Heterojunction / Bifacial
Cell sizes: 156.75 x 156.75 mm / 158.75 x 158.75 mm (full-square)
Typical power (Full Black)*: 195 Wp / m2
Typical power (colour)*: 150 - 185 Wp / m2
Encapsulation material: EVA or PVB
Glass thickness per pane: 2 - 12 mm
Hail resistance: Hail protection class 4 or 5
Fire protection: Top and back layer are made of heat-resistant glass. The component is considered to be non-combustible material as defined by the Cantonal Fire Insurances.
* The square-metre performance of the solar module depends on the specific format
